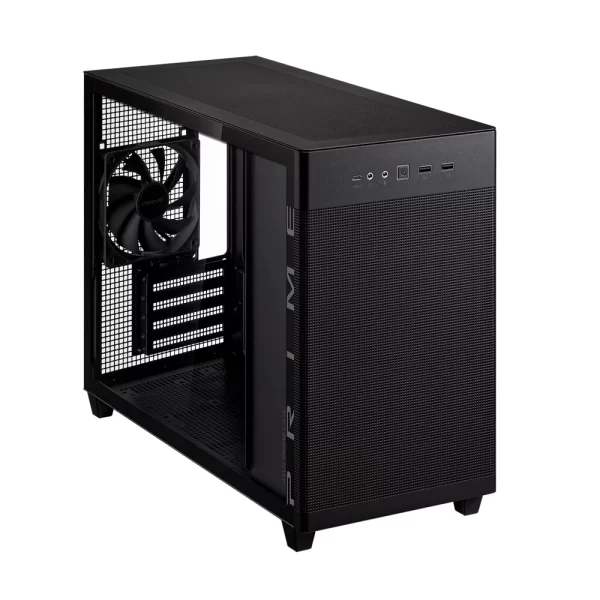

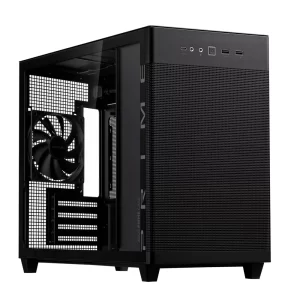

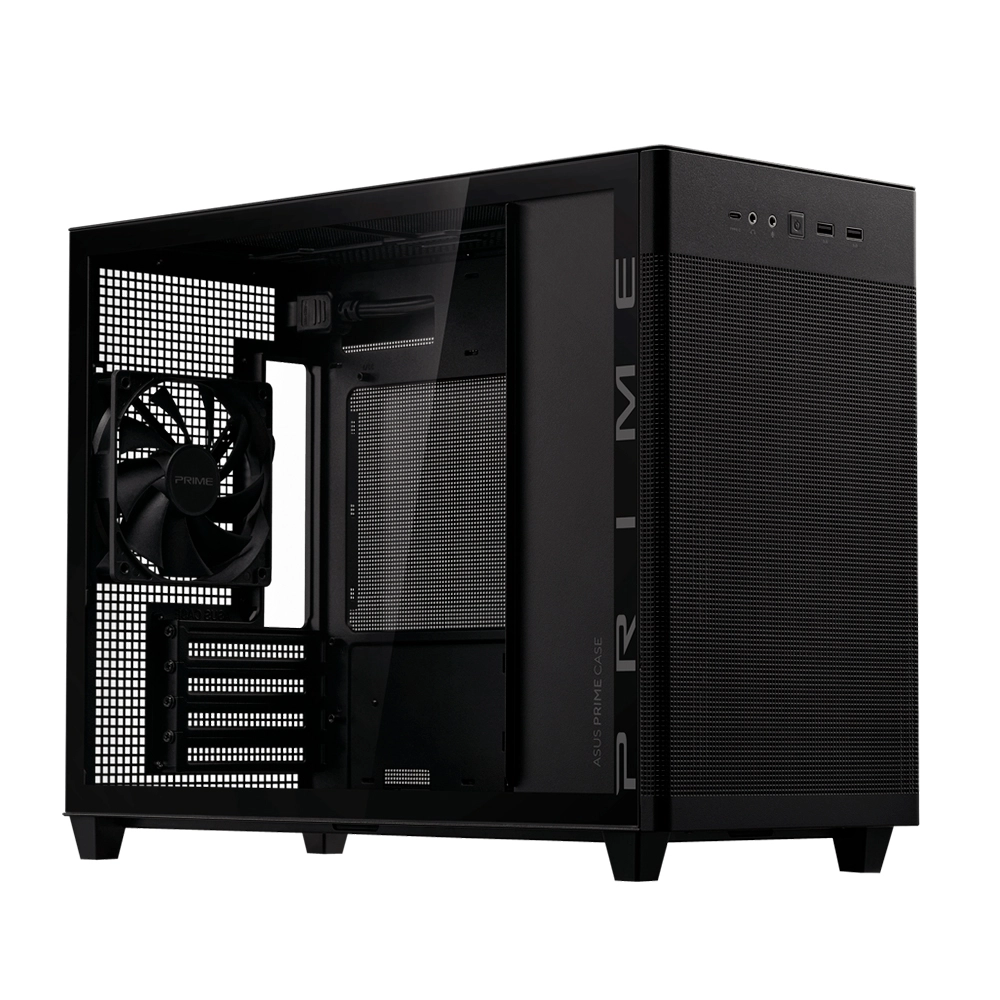

model asus prime ap201 tempered glass microatx case
case size small tower
motherboard support micro-atx – mini-itx
drive bays
1 x 2.5a bay
3 x 2.5a-3.5a combo bay
expansion slots 4
front i-o port
1 x headphone
1 x microphone
2 x usb 3.2 gen1
1 x usb 3.2 gen2 type c
radiator support (top)
120 mm
140 mm
240 mm
280 mm
360 mm
radiator support (rear)
120 mm
cooling support (top)
3 x 120 mm
2 x 140 mm
cooling support (rear)
1 x 120 mm
pre-installed fans (front) none
pre-installed fans (rear) 1 x 120 mm
maximum cpu cooler height 170 mm
maximum gpu length 338 mm
maximum psu length 140-180 mm
removable dust filters bottom
maximum cable management space 32 mm
dimensions 205 x 350 x 460 mm
weight 6.3 kg
